Volume control stops responding, then the phone and cruise-control buttons follow. Is the steering wheel switch worn out, has the clock spring lost continuity, or is a simple fuse cutting power to the circuit? The pattern matters: one isolated button often suggests a local switch fault, while several dead controls combined with horn failure or an airbag warning point toward a shared rotating connection.
Before ordering parts, drivers need a practical way to compare symptoms, check basic electrical causes, and recognize when airbag-related diagnosis belongs in professional hands.

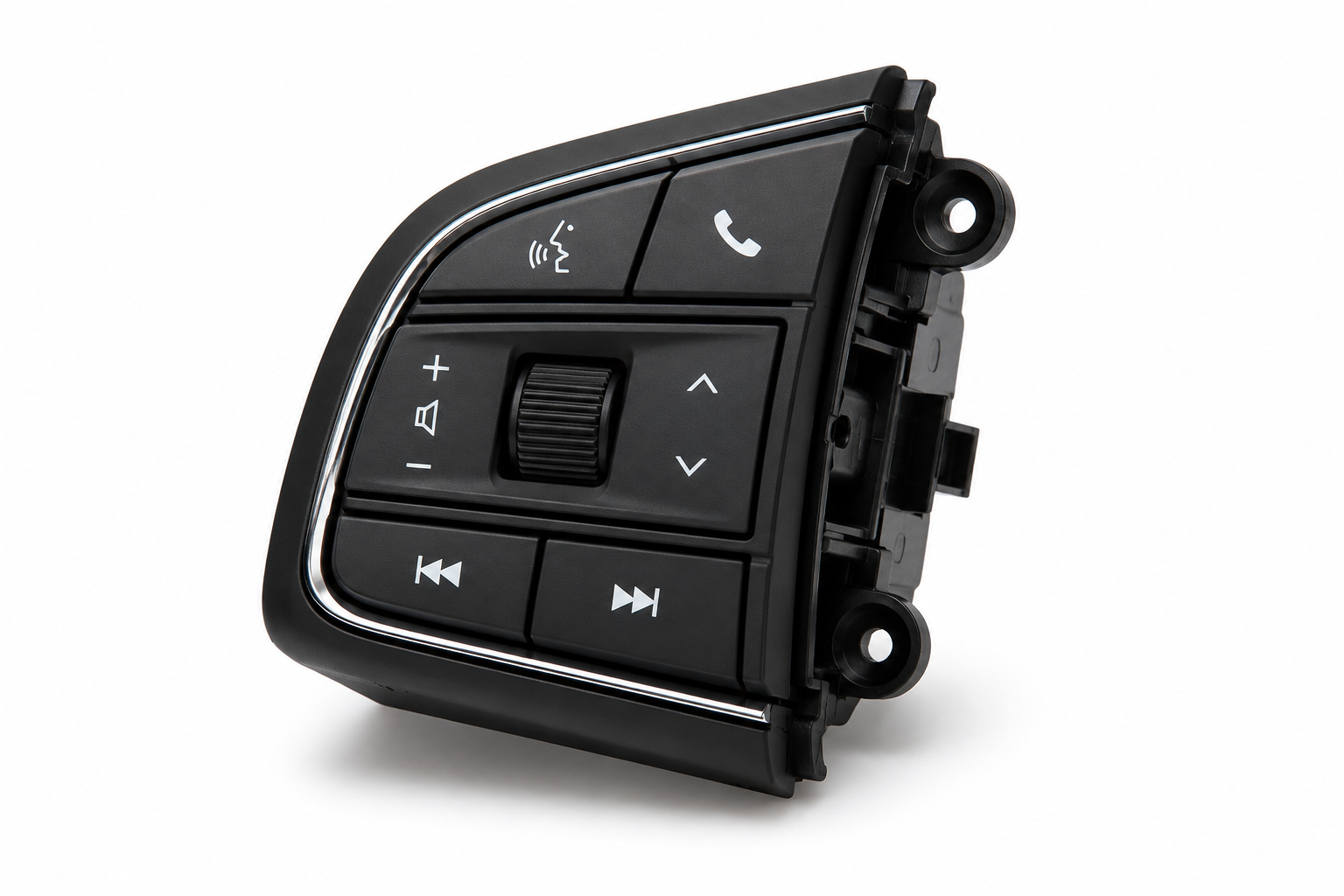

When only one command stops responding, begin near that control. A single steering wheel switch command can fail because its contact is worn, contaminated, cracked, or no longer moving correctly. Other functions may remain normal because each command can use a separate contact within the same steering wheel switch.
Physical feel provides useful evidence. A sticky button may have residue around its edges, while a soft, loose, or shallow control may have a damaged membrane or return mechanism. If the horn works, no SRS warning appears, and the opposite-side controls remain normal, a local switch or connector fault becomes more likely.
When audio, phone, cruise control, dashboard navigation, and the horn stop working together, several switches probably have not worn out simultaneously. The common point may be a shared connector, power feed, ground, communication circuit, steering-column module, or clock spring.
The clock spring deserves more attention when steering wheel switch failure is paired with horn loss or an SRS warning because these circuits may pass through the same rotating connection. Steering wheel switches and clock springs perform separate functions and should not be treated as interchangeable replacement parts.
An SRS warning does not identify the failed component by itself. It does mean the diagnosis should include the restraint system because the driver’s airbag connection may also pass through the clock spring.
Angle-dependent operation is a strong clue. If a dead button works while the wheel is turned left, fails near center, or responds only at one position, a fractured ribbon conductor may be making temporary contact as it coils and uncoils.
Rubbing, clicking, or scraping behind the wheel adds weight to that diagnosis, especially after steering-column work. A button that stays dead at every angle still points more strongly toward the steering wheel switch, a local connection, or an electronic input problem.
Observed symptom | Switch more likely | Clock spring more likely | Fuse, power, or wiring more likely |
One specific button is dead | High | Low | Low |
Button feels sticky or damaged | High | Low | Low |
Several unrelated controls fail together | Medium | High | Medium |
Controls work only at certain wheel angles | Low | High | Low |
Buttons, horn, and SRS warning appear together | Low | High | Low |
Every control is dead, but horn and SRS remain normal | Medium | Medium | High |
There is no universal fuse labeled “steering wheel buttons” across all vehicles. Audio controls, cruise-control inputs, the horn, steering-column electronics, and the SRS system may use different circuits. Start with the owner’s manual, fuse-box chart, or vehicle-specific wiring information rather than pulling random fuses.
A visual inspection can miss a hairline break, so test both sides with a test light or multimeter when service information permits it. Voltage on one side only indicates an open fuse; no voltage on either side suggests an upstream supply problem. Replace a failed fuse only with the specified amperage, and investigate any replacement that blows again.
Many modern steering wheel switch inputs do not control a device directly. A steering wheel switch input may be read by a column module, transmitted through the vehicle network, and interpreted by the infotainment or body-control system.
Consider what happened immediately before the failure. A weak battery, jump-start, battery replacement, software interruption, or recent electrical repair may disturb module communication without damaging the button. Multiple electronic faults or temporary recovery after a vehicle-approved restart support this direction, although recovery does not prove the cause has disappeared.
Inspect what can be reached without disturbing the airbag. Look for sticky residue, worn legends, cracked trim, loose button caps, impact marks, or signs that the steering wheel was previously removed. Liquid contamination may affect one control first or spread across an entire switch bank.
Check safely accessible plugs for looseness, corrosion, bent terminals, or pinched wiring. A partially seated connector can disable a complete switch group. Do not probe restraint-system connectors, apply voltage to airbag circuits, or remove the airbag without the correct service procedure. Visible switch damage supports a local fault; angle-dependent failure keeps the clock spring higher on the list.
A basic engine-code reader may not access the relevant modules. Diagnosis is more useful when the tool communicates with the SRS, steering-column, body-control, and infotainment systems. Stored faults may indicate an open circuit, implausible input, communication loss, or resistance problem.
Live data can show whether the vehicle recognizes a button press. If the displayed state changes from “off” to “on,” the steering wheel switch signal is reaching the module and the fault may be farther downstream. If no change appears, testing should move toward the switch, connector, clock spring, power, and ground paths.
Resistance or continuity testing requires the correct wiring diagram and restraint-system precautions so the signal loss can be located before parts are ordered.
● Record which buttons and related functions have failed.
● Check the correct fuses with vehicle-specific information.
● Note whether operation changes as the wheel turns.
● Check the horn, warning lights, and column noises.
● Scan the modules receiving steering-wheel inputs.
● Confirm the failed circuit before replacement.
A steering wheel switch faces repeated finger pressure, vibration, temperature changes, and contamination. Conductive pads can wear, mechanical contacts may weaken, membranes can split, and small circuit-board joints may crack. Because the damage develops at the point of use, one steering wheel switch button or one side of the wheel often fails first.
Moisture, cleaning fluid, skin oils, and spilled drinks can raise contact resistance. Typical results include delayed response, repeated presses, or a button that works only when pushed at an angle. Sealed assemblies are often more reliably replaced than opened and repaired with temporary methods.
For replacement sourcing, Conshion steering wheel switches can be matched by vehicle application and reference number. Compatibility should still be verified against the original component, connector arrangement, and installed vehicle functions.
The clock spring connects the stationary column to the rotating wheel through a flexible ribbon circuit that winds and unwinds. This arrangement carries steering-wheel controls, horn signals, and the driver-airbag connection without ordinary wires twisting around the column.
Fatigue can damage the ribbon, but previous repair work is another risk. An off-center clock spring may reach the end of its travel before full steering lock, stretching or tearing the circuit. Impact damage, incorrect handling, or turning the wheel while components are disconnected can cause similar failure.
These mechanisms explain why several circuits may disappear together and why operation may change with wheel angle.
A fuse does not wear like a button contact. It opens when current exceeds its rating, usually because of a short, overloaded branch, or failed component. Repeated fuse failure therefore means the electrical cause remains active.
Loose grounds, corrosion, pinched wires, and damaged harness sections can affect several controls. Unlike many clock-spring faults, these problems do not necessarily change with steering angle; they follow the affected supply, ground, or communication path.
Replacing the steering wheel switch cannot restore missing power, and installing a larger fuse only hides the warning. Testing should follow the circuit from supply to input, through shared connections, and onward to the receiving module.
Correct diagnosis is only half the job; the replacement must match the vehicle. Verify production details, steering-wheel design, connector layout, pin arrangement, installed functions, and original equipment reference. Two steering wheel switch assemblies may look identical yet support different combinations of cruise control, voice commands, heating, menu navigation, or assistance settings.
Do not order a steering wheel switch by button appearance alone. Compare the number printed on the original component and confirm the exact application. The same rule applies to a clock spring because connector count, ribbon circuits, steering-angle integration, and column design may differ.
The Conshion 8460016661 clock spring uses the reference RN2301 and is available with OEM and ODM customization based on drawings or samples. These identifiers can support replacement sourcing, but final fitment must still be confirmed against the vehicle configuration and original reference number.
Keep the wheel centered before disassembly when the service procedure requires it. An incorrectly centered clock spring can be damaged as soon as the wheel reaches full lock.
Some surface-mounted steering wheel switch repairs may be straightforward with model-specific instructions, but many steering wheel switch replacements require access near the driver’s airbag. Clock-spring replacement generally requires removing the steering wheel itself.
Professional diagnosis is the safer choice when the SRS warning is illuminated, the horn has failed with multiple controls, the wheel must be removed, or the correct restraint-system procedure is unavailable. Depending on the vehicle, repair may also require code clearing, steering-angle initialization, calibration, or module programming.
Airbags deploy extremely rapidly and are designed as supplemental protection used together with seat belts. Work involving the airbag module, restraint-system connectors, or steering-wheel center requires careful handling and the correct vehicle-specific procedure.
Avoid continuity testing, voltage application, or improvised tools on airbag circuits. Safe preliminary work ends with observation, correct fuse checks, accessible connector inspection, and non-invasive scan data.
When steering wheel controls fail, the symptom pattern usually offers the clearest direction. One dead or sticky button often points to the steering wheel switch, while several failed controls combined with horn loss, angle-dependent operation, or an SRS warning may indicate the clock spring. Fuse, wiring, connector, and module checks should come before replacement.
Zhejiang Conshion Electrical Group Co., Ltd. provides steering wheel switches and related steering-column components that support accurate replacement once the fault and part reference are confirmed. Careful diagnosis helps restore normal control functions while avoiding unnecessary parts and repeat repair work.
A: Common causes include worn switch contacts, a damaged clock spring, a blown fuse, loose wiring, low voltage, or a control-module fault. The failure pattern helps narrow the cause.
A: One failed or sticky button usually points to the switch. Several dead controls, horn failure, an SRS light, or angle-dependent operation suggest the clock spring.
A: Yes, but vehicles may use separate fuses for the horn, steering-column module, infotainment system, and cruise-control inputs. Check the vehicle-specific fuse chart before replacing parts.
A: The driver’s airbag circuit often passes through the clock spring. If its ribbon cable breaks, steering-wheel controls may fail and the SRS module may illuminate the warning light.
A: The vehicle may remain steerable, but horn loss or an active airbag warning indicates reduced safety-system function. Arrange diagnosis promptly and avoid disturbing airbag connectors yourself.
A: Record which functions failed, check the correct fuses, and note whether operation changes with wheel position. Scan-tool live data can confirm whether button inputs reach the module.
