A power window that works intermittently, a horn that responds only when pressed at an angle, or a dashboard control that suddenly stops working can all point to a faulty automotive switch. Yet the same symptoms may also come from a blown fuse, damaged wiring, poor grounding, or a failed actuator.
Testing with a multimeter helps separate a bad switch from the rest of the circuit. By checking continuity, resistance, supply voltage, and voltage drop, you can see whether the switch opens and closes correctly and whether current reaches the component it controls.
Observe exactly when the fault occurs. A window that fails from both the driver’s master control and the individual door control suggests a different problem from one that works at one switch but not the other. Test upward and downward movement separately, then repeat the check with the window-lock function released. Also note whether the failure is constant or appears only after vibration, rain, heat, or repeated use.
Check the relevant fuse before removing trim. When several accessories fail together, look for a shared feed, relay, or ground rather than assuming several automotive switches failed at once. If the motor can be heard but the glass does not move, the fault may be mechanical. No sound at all makes electrical testing more useful.

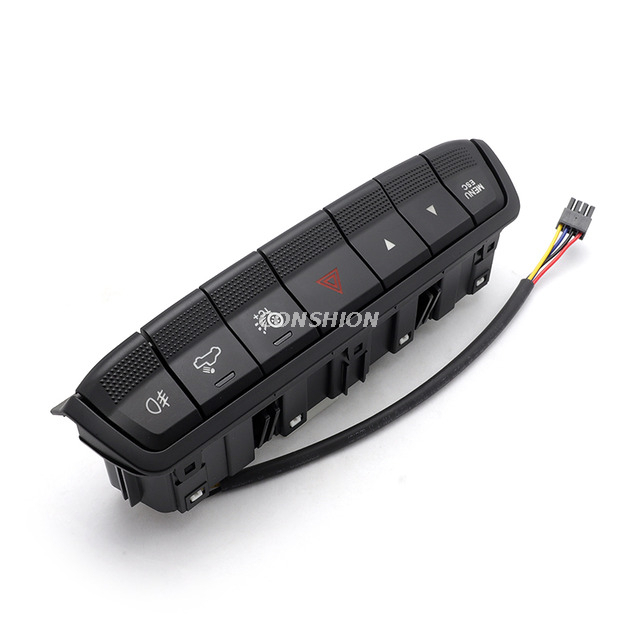

Find the correct wiring diagram or connector pinout before touching the automotive switch terminals. Determine whether the unit is a simple on/off contact, momentary push switch, reversing control, multi-position assembly, or low-current input to a vehicle module. These designs do not produce the same readings. The correct testing method therefore depends on how the switch communicates with the rest of the circuit.

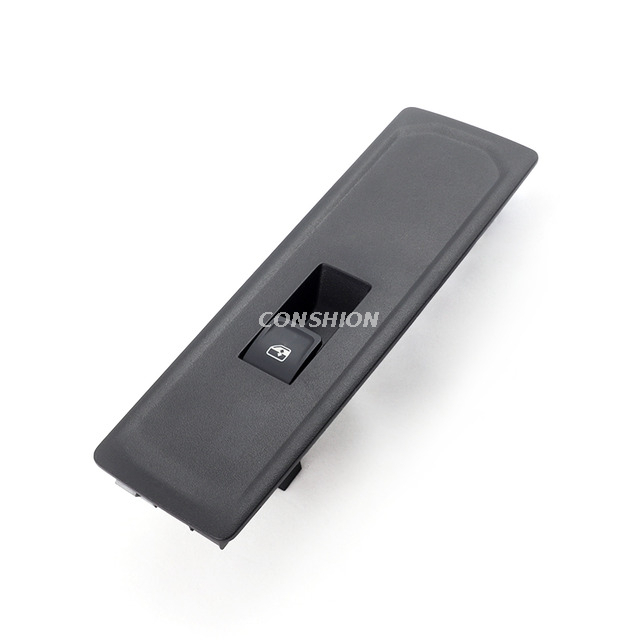

Application details also matter. The Conshion 81626305178 window switch is a three-pin option for MAN truck applications, while the BMW 5 Series power window switch uses a different vehicle-specific configuration. This contrast shows why appearance alone is not enough. Confirm the OE reference, pin count, mounting position, and control functions before testing or replacing the part.
Switch off the ignition, remove the key, and wait for retained accessory power to shut down. Disconnect the automotive switch connector before selecting continuity or resistance mode. Follow the vehicle procedure if it calls for disconnecting the negative battery terminal, especially around sensitive modules. Battery disconnection may reset clocks, saved positions, or learned settings.
Never test resistance on a live circuit. In continuity mode, the multimeter supplies its own small test current, so external voltage can create false readings or damage the instrument. Isolate the circuit or disconnect battery power before performing automotive continuity testing.
Check the automotive switch housing, button movement, connector, and terminals. Moisture, corrosion, bent pins, recessed terminals, heat discoloration, melted plastic, or weak connector tension can interrupt current even when the internal contacts remain usable. A button that sticks or fails to return can indicate mechanical damage. Release the plug by its locking tab rather than pulling on the wires.
Insert the black lead into COM and the red lead into the V/Ω jack. Select continuity mode, then touch the probes together. The meter should beep and display very low resistance. Note the lead resistance because the closed-switch reading may be only slightly higher. Label the pins from the wiring diagram or photograph the connector before testing several combinations.
Pre-Test Checklist
● Confirm the automotive switch, OE reference, and connector.
● Obtain the wiring diagram or terminal map.
● De-energize the circuit.
● Verify the meter and leads.
● Inspect and label the terminals.
● Record every switch position and reading.
With the automotive switch disconnected, place one probe on each terminal specified for the contact path. In the OFF or released position, a normal open contact should display OL, very high resistance, or no tone. In the ON or pressed position, the reading should change to stable low resistance and the meter should usually beep.
A momentary automotive switch should show continuity only while held. Release it and the circuit should open again. Repeat the movement several times instead of accepting one successful result because worn contacts may work once and fail on the next press.
Do not rely on the audible signal alone. Continuity thresholds vary by meter, and some instruments beep at resistance values too high for a healthy loaded circuit. The numerical ohms display provides a more precise view of the automotive switch contact condition.

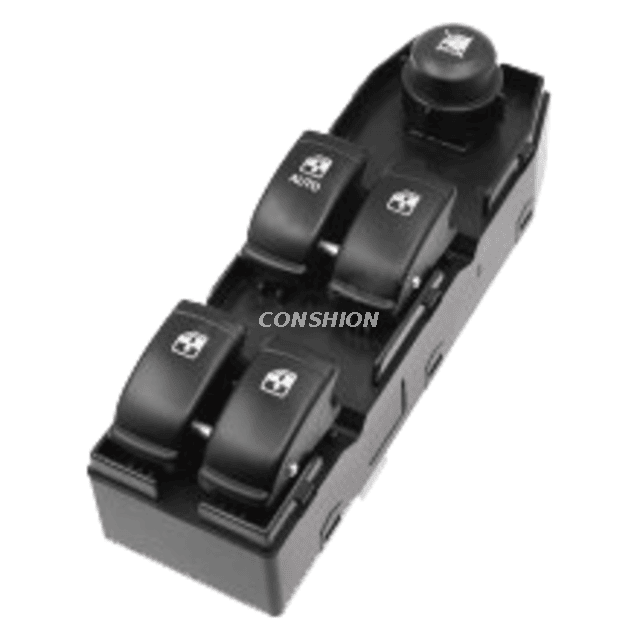

A power window switch may reverse motor direction by changing which terminals connect in the UP and DOWN positions. Use the pinout to locate the common, supply, ground, motor, illumination, lockout, or signal terminals. Do not assume every pin should carry battery voltage.
Start with the switch released and record which specified pairs are open or closed. Press UP and test the path shown in the diagram. Repeat for DOWN, then check any automatic-window detent separately. If the automotive switch assembly contains several buttons, create a terminal map for each one.
The expected pattern matters more than one resistance number. An automotive switch can show continuity somewhere and still be defective if it connects the wrong pins, remains closed when released, or fails to reverse the circuit correctly.
Switch position | Expected result | Possible fault |
Released or OFF | OL or no continuity | Stuck or shorted contacts |
Pressed or ON | Stable low resistance | Open or contaminated contact |
UP command | Correct UP pair closes | Reversing-path fault |
DOWN command | Correct DOWN pair closes | Reversing-path fault |
Automatic detent | Additional specified path appears | Worn secondary contact |
Hold the automotive switch in an active position and gently move the button sideways. Watch the display while lightly moving the connector and nearby harness. A disappearing beep, sharply changing resistance, or a reading that appears only when the button is pressed at an angle points toward worn contacts, loose terminal fit, contamination, or a damaged conductor.
Test a known-good path first so the meter and probe pressure are proven. Moving the wires during continuity checks can simulate vibration and expose intermittent breaks. If the reading remains stable throughout the movement, the tested contact is less likely to be the source of an intermittent fault.
Continuity confirms automotive switch logic, but it cannot show whether the circuit delivers enough voltage under load. Continue with powered testing when the contact pattern appears correct yet the component still behaves poorly. The next measurements evaluate the switch as part of the complete vehicle circuit.
Reconnect the automotive switch and set the multimeter to DC voltage. Back-probe the connector with a suitable probe or breakout lead; avoid piercing insulation because the opening can admit moisture. Keep the connector attached so the circuit remains under normal operating conditions.
Place the black probe on a verified ground and the red probe on the automotive switch supply terminal. Compare the result with battery voltage and the vehicle specification. If the expected supply is missing, move upstream to the fuse, relay, splice, connector, or feed wire rather than replacing the switch.
Check the ground side while the circuit operates. A ground can look clean and still develop resistance under load. Activate each switch position and measure the relevant output or signal terminal. The output should change according to the wiring diagram.
Continuity and voltage answer different questions. An automotive switch can pass an isolated continuity test even though no operating voltage reaches its connector. Correct input voltage also does not prove that the automotive switch contacts can carry current to the load. Do not confuse a low-resistance path with the presence of operating voltage.
Voltage-drop testing is useful when the automotive switch passes continuity checks but the window, lamp, fan, or other load remains slow, weak, or intermittent. Keep the circuit connected and operate it so current flows. Place one probe on the input side of the closed automotive switch path and the other on its output side. The meter displays the voltage lost across that section.
A healthy closed contact should lose very little voltage. Corrosion, weak terminal pressure, pitted contacts, or overheated parts add resistance. An unloaded ohms test may miss that restriction because the meter’s small test current does not reproduce actual operation. Voltage drop must be measured while current is flowing.
Use the manufacturer’s service limit whenever available. Around 0.30 V may be used as a general reference across a conventional automotive switch, while low-current electronic circuits may require a lower value. Treat this figure as guidance rather than a universal pass-or-fail limit.
If the automotive switch voltage drop is low, measure the feed wiring, connector interfaces, and ground side separately. Electronically managed controls may require signal-voltage specifications or scan data, so never apply battery voltage to an unidentified module input. A low drop across the switch shifts attention toward another section of the circuit.
Interpret the tests as a group rather than judging the automotive switch from one number. A complete diagnosis must account for continuity, input voltage, output voltage, loaded voltage drop, and connector condition.
Test result | Most likely meaning | Next check |
No continuity in the active position | Open internal contact | Verify the terminal pair and repeat |
Continuity in every position | Stuck, shorted, or misidentified path | Confirm pinout and released-position logic |
Correct continuity but no supply voltage | Upstream circuit fault | Check fuse, relay, feed, and connectors |
Correct supply but no switched output | Switch, ground, or command-path fault | Verify ground and switch logic |
Correct output but no load operation | Downstream wiring or actuator fault | Test the harness and load |
Reading changes during movement | Intermittent contact or wire fault | Inspect terminal tension and wiring |
Excessive voltage drop under load | High resistance | Test switch and connector separately |
No continuity supports automotive switch replacement only after the correct terminals and position are verified. If input voltage is absent, the switch cannot create an output. When input and output are correct, move the diagnosis toward the load or connecting wire.
Repeat unexpected measurements with firm probe contact. Compare the result with the service-manual switching chart or a known-good unit when available. Replace the automotive switch when it repeatedly shows an incorrect contact pattern, unstable resistance, excessive voltage drop, burned terminals, mechanical sticking, cracked plastic, or moisture damage that cannot be corrected safely.
Consider connector condition separately. Installing a new part into a loose, overheated, or corroded plug may leave the symptom unchanged and can damage the replacement. Repair the terminal or connector when the voltage loss is located there.
Before ordering, confirm the OE number, vehicle model and production range, installation position, pin count, connector keying, illumination, lockout features, and automatic-window functions. Conshion provides application-specific power window switches and other vehicle switch options, but correct automotive switch selection still depends on exact vehicle matching rather than visual similarity. A physically similar part may use a different pin assignment or control function.
A basic multimeter can support a reliable decision for conventional contact designs. Module-controlled automotive switch assemblies may also need wiring data, fault-code checks, live data, or bidirectional testing. Those additional checks help prevent replacement of a functional switch when the command is being lost elsewhere.
A reliable diagnosis comes from testing the entire circuit rather than judging an automotive switch by symptoms alone. Continuity checks reveal whether the contacts change correctly, while voltage and voltage-drop measurements help locate missing power, poor grounds, and resistance under load. When replacement is necessary, matching the OE number, connector, pin layout, and vehicle application prevents further faults. Zhejiang Conshion Electrical Group Co., Ltd. supplies power window switches and other vehicle control switches for application-specific replacement, helping repair professionals restore dependable operation without unnecessary component changes.
A: Use continuity or resistance mode with the switch disconnected and the circuit unpowered. Use DC voltage mode only when checking power, ground, or output in an energized circuit.
A: A closed switch should show a steady beep and very low resistance. An open switch normally displays OL, infinite resistance, or no continuity tone.
A: Disconnect or isolate battery power before continuity and resistance testing. Powered voltage tests require the circuit to remain energized and should follow the vehicle’s wiring procedure.
A: Yes. Worn or corroded contacts may pass a low-current continuity test but create excessive resistance under load. A voltage-drop test can reveal this problem.
A: Check for power and ground at the connector. Correct switch continuity without supply voltage suggests an upstream fuse, relay, connector, or wiring fault.
A: Multi-position and reversing switches connect different terminal pairs in each position. Testing only one position may miss a failed UP, DOWN, momentary, or secondary contact.
