The mirror switch is a small yet essential component found in nearly all modern vehicles, playing a critical role in ensuring safe driving and comfort. Simply put, the mirror switch is the control mechanism for adjusting the position of your vehicle’s side mirrors—also known as wing mirrors or door mirrors. With a mirror switch, the driver can electronically move the mirror glass in various directions—up, down, left, and right—without the need to physically manipulate the mirror housing from outside the vehicle.
But there’s more beneath the surface. In today’s automotive engineering, the mirror switch has evolved beyond a basic directional controller. Depending on the vehicle’s configuration, it may also be responsible for activating heating elements in cold weather, folding mirrors inward automatically, or even adjusting mirrors based on memory settings stored in the vehicle’s onboard system. These advanced functions make the mirror switch an integrated part of the vehicle’s electronic control system (ECS).
This article will explore the mirror switch in depth—its core functionality, technical structure, variations, common issues, and practical use. We'll also provide a helpful FAQ section and a comparison table to help you understand its functions at a glance.
At its core, the mirror switch is an electromechanical interface that connects to the mirror motors through the vehicle’s wiring harness. When you press or slide the switch in a particular direction, it completes a circuit that sends a specific voltage signal to a small motor embedded inside the mirror housing. This motor then pivots the mirror glass according to the signal received.

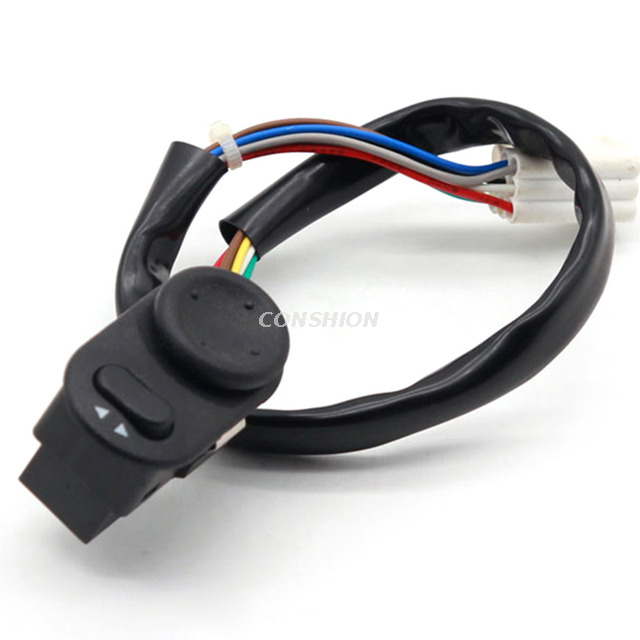

Most mirror switches are joystick-type, allowing 360-degree directional control. Some include a rotary selector that lets you choose between the left or right mirror before adjusting its position. In more advanced models, especially in luxury vehicles, mirror switches may also include:
Heated mirror control – To activate defrosting in winter.
Mirror folding function – To automatically retract mirrors in tight spaces.
Memory presets – To recall preferred mirror positions.

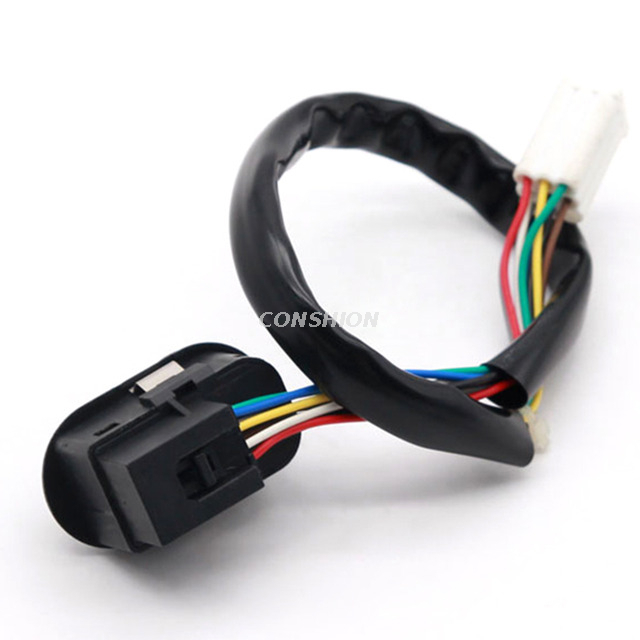

The switch itself is usually mounted on the driver’s side door panel, positioned for easy access. Internally, it comprises a printed circuit board (PCB), a set of conductive traces, contact points, and a plastic or rubber interface for tactile control.
While the primary function of the mirror switch is to adjust side mirrors, it performs several additional roles that enhance safety and convenience. Below is a breakdown of its most common functions:
| Function | Description |
|---|---|
| Directional Adjustment | Move mirror glass up/down/left/right. |
| Mirror Selector | Toggle between left and right side mirrors. |
| Heating Activation | Turn on mirror defrost heaters in cold weather. |
| Power Folding | Electrically fold mirrors for parking or narrow spaces. |
| Memory Recall | Restore saved mirror positions linked to driver profiles. |
| Blind Spot Integration | Adjust mirrors to minimize blind spots, in combination with sensors or cameras. |
These features not only improve the driver’s field of vision but also contribute to accident prevention, especially when changing lanes, parking, or reversing.
Like any electrical component, a mirror switch can develop problems over time, often due to wear and tear, electrical faults, or water intrusion. Recognizing the symptoms early can save you both time and repair costs. Here are the most frequent issues:
Non-responsive Mirror Movement
If pressing the switch doesn’t move the mirror at all, it could be due to a blown fuse, disconnected wiring, or a faulty motor.
Only One Mirror Works
This issue is typically linked to a selector switch malfunction. The control might be stuck on one side or fail to engage properly.
Intermittent Operation
The switch may work sporadically if the internal contacts are dirty or corroded. Moisture infiltration is a common cause.
Heated Mirror Not Working
If heating fails, it might not be the mirror heater itself but the switch failing to send the signal.
Stuck in Folding Position
For motorized folding mirrors, the mirror may remain in the closed or open position due to signal failure or obstruction.
Troubleshooting Tip:
Start with checking the vehicle’s fuse box for any blown fuses related to the mirror system. Next, examine the wiring for continuity. If no faults are found, the mirror switch may need replacement.
Yes, replacing a mirror switch is often a manageable DIY task, especially if you have some basic knowledge of car interior disassembly and access to the right tools. Here’s a general outline of the process:
Disconnect the battery to prevent any electrical issues or accidental airbag deployment.
Remove the door panel using a trim removal tool to access the internal wiring and switch module.
Unclip the mirror switch from its mount and disconnect the wiring harness.
Install the new switch by reversing the process: reconnect wiring, clip in the switch, and reattach the panel.
However, always consult your vehicle’s manual. Some newer cars integrate the mirror switch with the vehicle’s body control module (BCM), which may require software reprogramming.
Q1: Can a faulty mirror switch affect both mirrors?
Yes. If the mirror switch is the root of the problem, it can stop signals from reaching either mirror, rendering both nonfunctional.
Q2: Is it safe to drive with a broken mirror switch?
Technically yes, but it's not recommended. Inability to adjust your mirrors can limit your visibility, especially in complex driving conditions.
Q3: Do all cars have heated mirror switches?
No. Heated mirrors are typically found in mid-to-high trim levels or in vehicles designed for cold climates.
Q4: Why do my mirrors fold automatically?
Your mirror switch may be linked to your vehicle's lock system. Some cars fold mirrors when the doors are locked as a safety or space-saving feature.
Q5: Will universal mirror switches work with any car?
Not always. Mirror switch design and pin configurations vary between models. Always verify compatibility before purchasing.
The mirror switch might seem like a minor feature on your dashboard or door panel, but it plays a vital role in ensuring road safety and driver comfort. Whether you're adjusting mirrors for a better rear view, defrosting ice on a winter morning, or folding them in a narrow parking spot, this small component is always at work.
Understanding its function, knowing the signs of failure, and recognizing when to repair or replace it are essential for maintaining your vehicle’s overall visibility and safety. While often overlooked, the mirror switch is truly one of those silent contributors that supports your every journey—one mirror movement at a time.
