The mirror switch, often referred to as the mirror control switch, is a vital but frequently overlooked component in modern vehicles. This small yet powerful control mechanism allows drivers to adjust their side mirrors (also called wing mirrors) without physically moving them. With the press of a button or toggle of a switch, the mirrors can be adjusted to enhance rear and side visibility, significantly improving driving safety and convenience.
But a common question many vehicle owners ask is: “Where is the mirror control switch located?” If you're puzzled by this, you're not alone. The location of the mirror switch varies depending on the vehicle's design and type. This article will guide you through the general locations, provide detailed insights into its function, cover FAQs, and help you troubleshoot potential issues.

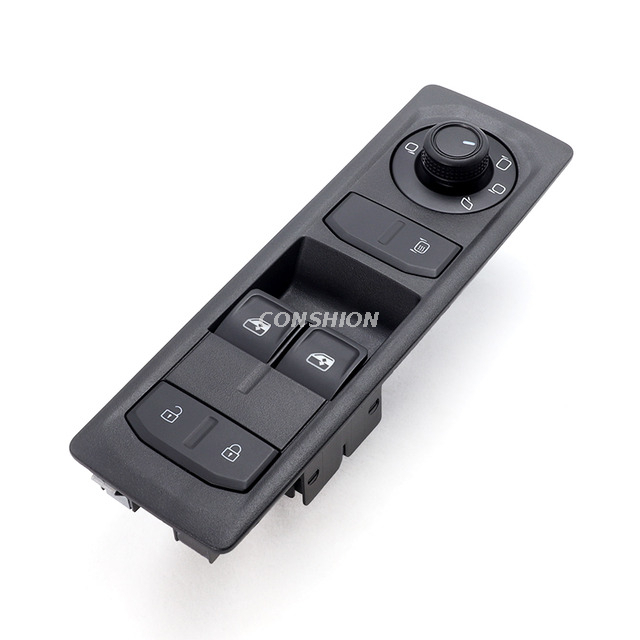

In most vehicles, the mirror control switch is located on the driver’s side door panel, typically near the window and door lock controls. This design is intentional, placing all the driver’s essential controls in one accessible area. Here's what you might expect:
Toggle or joystick-style switch: Used to select and adjust the left or right side mirror.
Rotary dial or button configuration: Some designs have a rotary switch that selects between L (Left), R (Right), and 0 (neutral/off).
Heated mirror control inclusion: In colder regions, mirror switches may have built-in defrost or heating functions.
This layout allows for intuitive use, especially when driving, as the driver doesn't need to divert attention far from the road.
While the driver’s door is the most frequent location, some vehicles place the mirror switch on the dashboard, usually to the left of the steering wheel or in the center console area. This is more common in luxury or uniquely designed vehicles aiming for a sleeker interior aesthetic.
A key benefit of the center console design is its ergonomic symmetry, allowing easier access for either left- or right-hand drive configurations. However, this setup may confuse new drivers or those used to the traditional placement on the door.
Not sure which button is the mirror switch? Most mirror control switches are marked with intuitive symbols:
Mirror outline with arrows: Arrows indicate directional adjustment.
L and R letters: Used to choose between adjusting the left or right mirror.
Heated icon (waves or heat lines): Shows additional features for mirror heating.
When in doubt, check your vehicle’s owner’s manual—it often includes diagrams of the dashboard and switch functions.
| Symbol/Icon | Meaning | Functionality |
|---|---|---|
| L / R | Left/Right mirror selection | Toggle to select which mirror to adjust |
| ↑ ↓ ← → | Arrows around a mirror icon | Controls direction of mirror movement |
| Wavy lines | Heated mirror function | Activates defrosting on side mirrors |
| 0 or Off | Neutral position | Deactivates mirror adjustment temporarily |
These symbols are often backlit, making them visible during night driving.
If you're unable to locate the mirror switch, consider the following possibilities:
Manual mirrors: Older or budget vehicles may have manually adjustable mirrors, with no electronic switch.
Obstructed view: The switch could be obscured by aftermarket accessories or wear.
Different design logic: Some vehicles place controls in uncommon areas like under the steering column or on the gear console.
Yes, like any electronic component, the mirror switch can fail. Common symptoms include:
Mirrors not responding to adjustments
Switch feels loose or unresponsive
Partial movement or erratic mirror behavior
Possible causes:
Electrical faults
Broken internal switch components
Disconnected wires or fuse issues
In such cases, a technician’s diagnostic is usually required. Replacing the switch is often an easy and cost-effective fix.
The mirror switch plays a critical role in safety and visibility. Adjusting your side mirrors properly before driving is key to reducing blind spots and enhancing peripheral awareness. A functioning mirror switch ensures that:
Multiple drivers can adjust mirrors to their height and position.
Quick adjustments can be made in poor weather or after mirror impact.
Road visibility is optimized when merging, reversing, or overtaking.
Imagine being on the highway with poorly adjusted mirrors—you wouldn’t want to guess where the nearest car is. The mirror switch empowers drivers with better control, directly contributing to safer journeys.
If your mirror switch is acting up, here’s how to diagnose it yourself before visiting a mechanic:
Check for power: Turn on your ignition. Most mirror switches require the key to be in ACC or ON.
Test each direction: If one direction doesn’t work, the problem may lie in the switch internals.
Inspect fuses: Refer to the fuse box diagram in your manual. Replace the mirror-related fuse if blown.
Look for physical damage: Cracks or loose toggles indicate mechanical failure.
Test for mirror motor response: If the switch is fine but mirrors don’t move, the motor inside the mirror housing may be the issue.
Many drivers discover that fixing a non-functional mirror switch is less complicated than expected.
Finding the mirror control switch is often just a matter of knowing where to look. Whether on the driver’s door, dashboard, or center console, this feature is engineered to make driving safer and more convenient. Understanding how it functions—and what to do if it fails—equips you to respond confidently and maintain optimal visibility on the road.
