Imagine effortlessly controlling your car's windows with just a touch. That's the magic of a power window switch. These switches are crucial in modern vehicles, offering convenience and safety. In this post, you'll learn how power window switches work, their components, and their importance in today's cars.
Understanding the components of a power window switch helps us see how this simple device controls your car's windows. Each part plays a key role in making sure the window moves smoothly and safely.

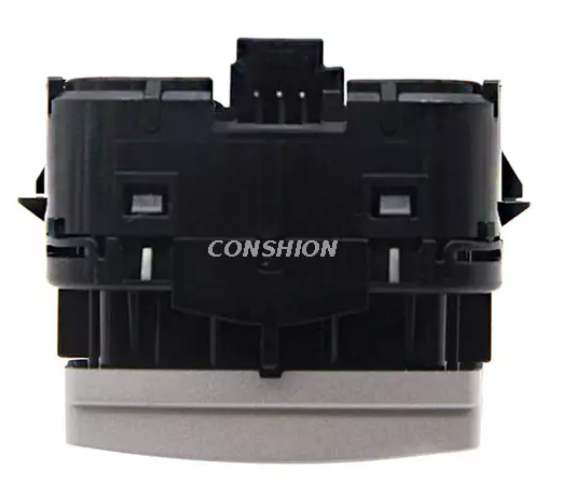

The switch assembly is the part you interact with. It usually has a button or lever that you press or push. This action sends a command to the window motor. The assembly also includes a housing that holds the button and the internal electronics together, protecting them from dust and damage.
Inside the switch, there are metal electrical contacts. When you press the button, these contacts touch each other, completing an electrical circuit. This allows electricity to flow from the car's battery to the window motor. When you release the button, the contacts separate, breaking the circuit and stopping the motor.
The wiring harness is a bundle of wires and connectors that link the switch to the car’s electrical system and the window motor. It carries the electrical signals triggered by the switch to the motor. The wiring harness must be well insulated and securely connected to prevent shorts or failures.
The window motor is a small electric motor that receives the electrical signal from the switch. It converts electrical energy into mechanical motion. The motor drives the window regulator, which is a mechanical system made up of gears, cables, or arms. The regulator moves the window glass up or down smoothly. The motor’s direction changes based on the polarity of the current, controlled by the switch.
When you press a power window switch, you complete an electrical circuit inside the switch assembly. This happens because the internal metal contacts touch each other, allowing electricity to flow. The direction you press the switch—either up or down—determines how the circuit is completed. This action sends a command to the window motor to move the window glass accordingly.
Most power window switches are momentary, meaning they only work while you hold the button. Once you release it, the contacts separate, breaking the circuit and stopping the motor. In some modern vehicles, a quick tap activates an automatic mode that moves the window fully up or down without holding the button.
The electrical signal travels from the switch through the wiring harness. This harness is a bundle of insulated wires that safely carry the current from the switch to the window motor. The wiring must be intact and well-connected to ensure smooth signal flow.
Inside the motor, the electrical current powers the motor's coils, creating magnetic fields that cause the motor shaft to rotate. The polarity of the current—meaning the direction of the electrical flow—controls the motor's rotation direction. Reversing the polarity makes the motor spin the opposite way.
The motor connects to a window regulator, a mechanical system that physically moves the window glass. The regulator often uses gears, cables, or arms to translate the motor’s rotation into vertical movement.
When the motor rotates in one direction, the regulator moves the window up. When the motor spins the other way, the window lowers. This change in direction is controlled by reversing the polarity of the current sent to the motor, which the switch manages internally.
For example, pressing the switch up sends current with one polarity, raising the window. Pressing down reverses the current, lowering the window. This simple yet effective control allows smooth and precise window movement.
Power window switches come in different types, each offering unique ways to control the windows. Understanding these types helps us appreciate how manufacturers design convenience and safety into window operation.
Manual operation is the simplest type. Here, you must press and hold the switch button continuously until the window reaches the desired position. The switch completes the circuit only while you hold it, sending power to the motor. Once released, the circuit breaks, and the motor stops immediately. This type is common in older vehicles or in basic window systems.
Many modern vehicles use automatic or one-touch switches. With a quick tap, the window will fully open or close without needing to hold the button. This feature uses a control module or relay that keeps the circuit closed until the window reaches its limit. It adds convenience, especially when driving, by allowing hands-free window control after a single press.
The system often includes sensors or timers that detect when to stop the motor automatically. For example, if the window encounters resistance, the motor stops to avoid damage or injury.
Most power window switches are momentary switches. They only activate the motor while pressed. Once released, the circuit opens, stopping the motor. Momentary switches provide precise control, letting you move the window incrementally. This design is energy-efficient and reduces wear on the motor by preventing continuous operation.
In some cases, momentary switches work alongside automatic functions. The switch sends a brief signal to a control module, which then manages the longer motor run time needed for full window travel.
Power windows are designed not just for convenience but also for safety. Modern vehicles include important features to protect passengers and prevent damage when operating power windows. Two key safety features are Anti-Pinch Technology and Auto-Reverse Functionality.
Anti-pinch technology helps avoid injuries or damage when the window is closing. It uses sensors or current monitoring to detect if something blocks the window's path. For example, if a hand or an object is caught while the window is going up, the system senses the increased resistance or slower motor speed.
When triggered, the anti-pinch system immediately stops the window and reverses its direction, lowering the glass until the obstruction clears. This feature is especially important for protecting children and pets from accidental injury.
The technology works by monitoring the motor's electrical current or speed. If the motor draws more current than usual or slows down unexpectedly, the control module interprets this as an obstruction.
Auto-reverse functionality is closely related to anti-pinch technology but focuses on the window’s automatic response to obstacles. It ensures the window reverses direction when resistance is detected during closing.
This function adds an extra layer of safety by preventing the window from continuing to close on something that could cause harm or damage. It works through a control module that receives signals from sensors or monitors motor behavior.
In some systems, the auto-reverse feature also activates if the window encounters mechanical issues or jams, preventing the motor from burning out or the regulator from breaking.
Modern power window systems go beyond basic up-and-down controls. They include advanced features that improve convenience, safety, and control. These features often rely on electronic components and smart integration with the vehicle's systems.
Centralized control allows the driver to operate all the windows from a single panel, usually located on the driver’s door. This feature gives the driver full control over every window in the vehicle, enabling locking or unlocking of the passenger window switches to prevent unwanted use, such as by children.
This system uses a master switch connected to the vehicle’s body control module (BCM). When the driver presses a button on this panel, the BCM sends signals to the specific window motor to move the glass up or down. This setup reduces wiring complexity by using data communication rather than direct power lines for each window.
Many modern vehicles use electronic control modules (ECMs) to manage power window operations. These modules receive signals from the switches and execute commands to the motors. They handle complex functions like:
● One-touch automatic window up/down
● Safety features like anti-pinch and auto-reverse
● Diagnostic monitoring for faults or failures
The ECM improves reliability and allows for software updates to enhance window functionality or add new features. It also protects the system by managing current flow and preventing motor damage.
Some vehicles provide exterior window control features, allowing windows to be operated from outside the car. For example, certain models enable lowering windows by turning and holding the key in the driver’s door lock. This feature adds convenience for ventilation or accessing the vehicle without unlocking it fully.
This function is controlled through the vehicle’s door module, which monitors the lock switch and key position. When activated, it sends signals to the window motors to lower the windows. This capability is often combined with security measures to prevent unauthorized use.
Power windows are convenient, but sometimes they stop working properly. Understanding how to troubleshoot common problems can save you time and money before visiting a mechanic. Let’s explore how to test the window motor, check wiring and switches, and replace damaged components.
If your power window doesn’t move, the motor might be the culprit. To test it:
● Remove the door panel carefully to access the window motor.
● Disconnect the motor from the wiring harness.
● Use a 12-volt power source, like a car battery or jump starter, to apply power directly to the motor terminals.
● Connect the positive lead to the motor’s positive terminal and the negative lead to the negative terminal.
● The motor should run and move the window up or down.
● Reverse the leads to check if it runs in the opposite direction.
● If the motor doesn’t respond or runs weakly, it likely needs replacement.
Testing the motor directly bypasses the switch and wiring, helping you isolate the problem.
Sometimes the issue lies in the wiring or the switch rather than the motor.
● Inspect the wiring harness for visible damage, such as cuts, frays, or corrosion.
● Use a multimeter to check for continuity in the wires from the switch to the motor.
● Test the switch by measuring voltage output when pressing the up and down buttons.
● If the switch fails to send voltage or the wiring shows breaks, repair or replace the faulty parts.
● Also, check the fuse and circuit breaker related to the power windows to ensure they are intact.
Loose connections or worn contacts inside the switch can cause intermittent operation or complete failure.
If testing reveals faulty parts, replacement may be necessary.
● Replace the window motor if it does not run when powered directly.
● Swap out the switch if it fails voltage tests or shows internal damage.
● Repair or replace wiring harness sections that are damaged or corroded.
● Use OEM (original equipment manufacturer) parts for best compatibility and reliability.
● After replacement, test the entire window operation to confirm the fix.
Proper installation and secure connections ensure the longevity of the repair.
Power window switches control car windows through switch assemblies, electrical contacts, wiring harnesses, and window motors. Future trends in power window technology include advanced features like centralized control and electronic modules for enhanced convenience and safety. In conclusion, understanding these components aids in troubleshooting issues and appreciating modern advancements. Conshion's innovative power window systems offer superior reliability and efficiency, ensuring smooth operation and enhanced vehicle safety.
A: A power window switch is a device that allows you to control the movement of a car's windows electronically, using a button or lever to send signals to the window motor.
A: When you press the button on a power window switch, it completes an electrical circuit, sending a signal through a wiring harness to the window motor, which then moves the window up or down.
A: Common reasons for a power window switch failure include corroded electrical contacts, damaged wiring harness, or a faulty window motor.
A: To troubleshoot, test the window motor directly, check wiring continuity with a multimeter, and measure voltage output from the switch to identify faults.
A: Power window switches offer convenience, allowing easy window control without manual effort, and often include safety features like anti-pinch technology.
