Modern vehicles rely on much more than individual switches to control everyday functions. In today’s body electronics architecture, the driver’s inputs, control modules, power distribution components, and electrical connections work together as one coordinated system. At the industry level, body electronics now covers body control, power distribution, door and seat modules, and lighting functions rather than isolated standalone parts.
For OEM buyers, aftermarket brands, and engineering teams, this means body electronics should be understood as a system, not as a list of separate parts. A window switch alone cannot raise the window without power distribution, signal handling, and the correct wiring path. A body control module cannot manage doors, lights, and comfort features unless the right switch signals, relays, fuses, and harness connections support it.
In this guide, we will explain what body electronics means in modern vehicles, how switches provide driver input, what the BCM does with those signals, how fuse boxes and relays manage power, why wiring harnesses connect everything together, and why system-level sourcing matters for both OEM and aftermarket projects.
Body electronics refers to the electrical and electronic functions that support vehicle comfort, convenience, access, lighting, and many non-powertrain operations. Infineon describes automotive body electronics as covering body control modules, power distribution, door and seat control, and LED lighting, while GM notes that modern vehicles rely on communication networks and control modules so different components can exchange information. In other words, body electronics is the part of the vehicle that turns everyday driver actions into coordinated electrical responses.
This is why body electronics has become more important as vehicles have become more feature-rich. Window lift, lighting, locking, climate-related user interfaces, steering-column controls, and comfort functions now depend on a network of switches, modules, relays, and wiring rather than only simple direct circuits.

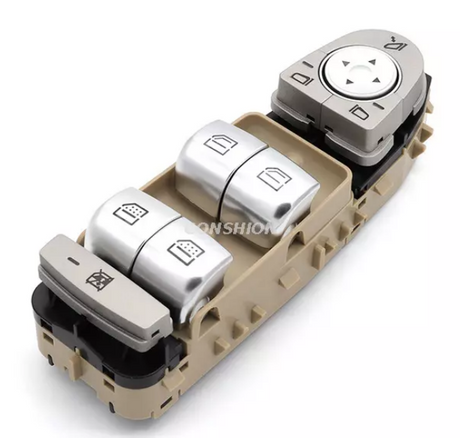

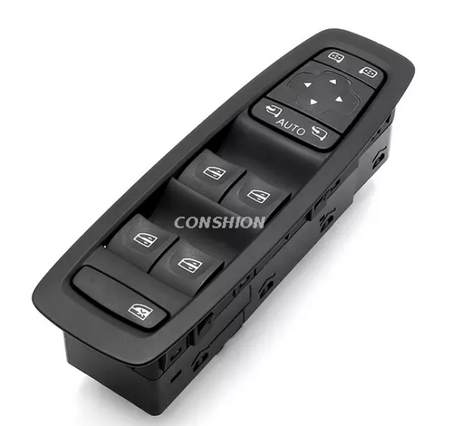

Switches are often the first point of interaction between the driver and the body electronics system. A power window switch, headlight switch, hazard warning switch, steering wheel switch, or sunroof switch does not usually perform the final function by itself. Instead, it provides the input that tells the vehicle what the driver wants to happen. GM summarizes this well by noting that sensors and switches play an important role in operating vehicle functions and safety-related features.
For example, when the driver presses a window switch, the switch generates an input signal. That signal may then be interpreted by a local module or by the BCM depending on the vehicle architecture. The same logic applies to lighting and warning functions: the switch is the request point, not necessarily the final power-delivery point.
The Body Control Module (BCM) acts as one of the key decision-making centers in body electronics.
In practical terms, this means the BCM receives input from switches and other sources, interprets what action is required, and then coordinates outputs through the vehicle’s electrical architecture. In a modern vehicle, the BCM may decide whether to energize a relay, send a network command, authorize a function, or trigger a timed response. Instead of each switch carrying all functional logic on its own, the BCM helps centralize control and coordinate multiple systems more intelligently.
Switches and modules need a power-distribution layer behind them, and this is where fuse boxes and relays become essential.
A fuse protects a circuit from overcurrent, while a relay allows a low-current control signal to switch a higher-current load. The automotive relays let a small signal control a high-current circuit, making them useful for loads such as lighting and motors. In many vehicle systems, this means the driver presses a switch, the BCM or control logic interprets the request, and then a relay helps deliver power safely to the target load without forcing high current through the dashboard switch itself.
| Component | Main Role in the System | Typical Contribution |
|---|---|---|
| Switch | Driver input | Sends the command or request |
| BCM | Logic and coordination | Interprets signals and manages responses |
| Fuse box | Circuit protection and distribution | Protects branches of the electrical system |
| Relay | Controlled power switching | Allows low-current control of higher-current loads |
| Wiring harness | Electrical connection path | Carries power and signals between components |
This layered structure is one reason body electronics can support more functions without overloading individual switches. It also explains why a body electronics fault is not always caused by the visible switch alone; the issue may be in power distribution, relay switching, control logic, or electrical connection.
A wiring harness is what makes the body electronics system physically work as one network. GM describes a wiring harness as an organized set of wires, terminals, and connectors that runs through the vehicle and relays information and electric power.
Without the harness, the switch signal cannot reach the control logic, the BCM cannot command the output path, and the protected power cannot reach the device that needs to operate. In other words, the harness is not just a bundle of wires. It is the electrical pathway that allows the whole body electronics architecture to function as a coordinated system.
The easiest way to understand the relationship is to look at common vehicle functions.
The driver presses the window switch. The signal is read by the vehicle’s control logic. Depending on the architecture, the BCM or a related controller authorizes the function, a relay or controlled power path supplies energy to the motor circuit, and the harness carries both the signal and power to the required location.
A headlight switch or hazard warning switch sends the user request. The BCM or other control logic determines the response and may coordinate related timing or signaling logic. Power is protected through fuse distribution and may be switched through a relay depending on the circuit design. The wiring harness then links the switch side, module side, and lamp side into one complete circuit path.
For door locks and related access features, switch input, BCM logic, power distribution, actuators, and harness routing all work together.
| Vehicle Function | Driver/Input Side | Control Side | Power/Protection Side | Connection Side |
|---|---|---|---|---|
| Power windows | Window switch | BCM or related controller | Fuse/relay path | Wiring harness |
| Lighting | Headlight / hazard switch | BCM or module logic | Fuse/relay path | Wiring harness |
| Door access | Switch / actuator request | BCM or access logic | Protected power circuit | Wiring harness |
Because body electronics is a system, failure can happen at several layers. A customer may see one symptom, such as a non-working window or lighting issue, but the root cause may not be the switch itself.
Common failure points include:
worn or inconsistent switch contacts
BCM or module signal-processing faults
blown fuses or weak power-distribution paths
relay failure in circuits that require switched high-current loads
damaged, loose, or corroded wiring harness connections
This is one reason diagnosis can become complex in modern vehicles. Since the function depends on input, logic, protection, switching, and connection, replacing one visible part without understanding the rest of the chain may not solve the real problem.
For OEM buyers, sourcing at the system level can improve compatibility, communication efficiency, and development speed. For aftermarket buyers, it can improve troubleshooting clarity, product matching, and portfolio completeness.
This matters because body electronics is moving toward greater integration. A supplier that understands only the switch may not fully support the system. But a supplier that understands the interaction among switches, BCMs, fuse boxes, relays, and harnesses is better positioned to support both OE development and aftermarket replacement programs. For buyers evaluating long-term cooperation, that systems perspective is often more valuable than choosing a single part in isolation.
Modern body electronics is built on cooperation between input devices, control modules, protected power paths, and electrical connections. The switch tells the vehicle what the driver wants. The BCM interprets and coordinates the response. Fuse boxes and relays manage protected power distribution. Wiring harnesses connect the whole system so information and power can move where they need to go. Together, these parts enable everyday functions such as windows, lighting, and vehicle access.
For buyers, the key takeaway is simple: body electronics should not be sourced or understood one part at a time. The more complex the vehicle function, the more important it becomes to think in terms of system architecture, product interaction, and long-term compatibility. That is exactly why system-level content and system-level sourcing are increasingly important in automotive electrical products.
