Automotive electrical systems rely on two distinct components to manage power safely: the sacrificial protector and the high-load controller. Every time you activate a heavy-duty winch or flip on your headlights, you depend on this hidden infrastructure. Upgrading vehicle accessories or diagnosing intermittent power failures requires understanding how these components interact. Misdiagnosing a simple power loss can cost you hours of frustration and unnecessary labor.
This guide breaks down the operational differences, diagnostic frameworks, and system-design principles for evaluating a centralized Car Fuse Box versus individual relay setups. We will explore how physical characteristics dictate functionality. You will also learn professional wiring topology rules designed to keep your vehicle safe from electrical fires. Whether you manage commercial fleets or build custom off-road rigs, mastering these foundational electrical principles ensures long-term vehicle reliability.
Distinct Roles: Fuses protect the wiring from thermal overload; relays control high-current loads using low-voltage signals.
Failure Profiles: Blown fuses cause complete, immediate circuit failure; failing relays typically cause intermittent operation or delayed engagement.
Topology Rules: In professional system design, a fuse must be installed as close to the power source as possible, strictly before the relay.
Integration Value: A centralized car fuse box combining both components reduces wiring complexity, mitigates fire risks for aftermarket diagnostics.
Misunderstanding component roles leads to improper wiring, increased fire risk, and damaged accessories. Many novice mechanics assume you can swap a protective device for a control device. This assumption often results in melted harnesses. Modern vehicles demand precise electrical management. Every accessory requires a specific amperage to operate safely. We must distinctively separate the roles of thermal failsafes and power switches to build reliable circuits.
Fuses act as the sacrificial link in any electrical system. Their primary function is to protect the vehicle's wiring harness—not the terminal device. Many people mistakenly believe a fuse protects the lightbulb or the radio. In reality, it protects the copper wire carrying power to that device.
They utilize a low-melting-point element enclosed in a protective casing. When an overcurrent event occurs, this element physically breaks the circuit. It melts away completely. This action stops the flow of electricity instantly. It sacrifices itself so your expensive wiring harness does not overheat and catch fire.
Relays act as electromagnetic switches. You can also think of them as "power amplifiers." They allow a low-amperage switch in the cabin to activate a high-amperage component in the engine bay. You no longer need to route thick, heavy-gauge wire through the vehicle firewall.
Instead, your dashboard switch sends a tiny signal to the relay. The relay then closes a heavy-duty mechanical contact. This sends direct battery power straight to the accessory. This method mitigates voltage drop across long wire runs. It also drastically reduces switch degradation, keeping your dashboard components cool and functional.
Standardized form factors and terminal logic are critical for scalability and compliance in system builds. When a component fails in a remote location, standardization saves the day. It allows you to swap parts easily. You can troubleshoot complex systems quickly when every component follows universal rules.

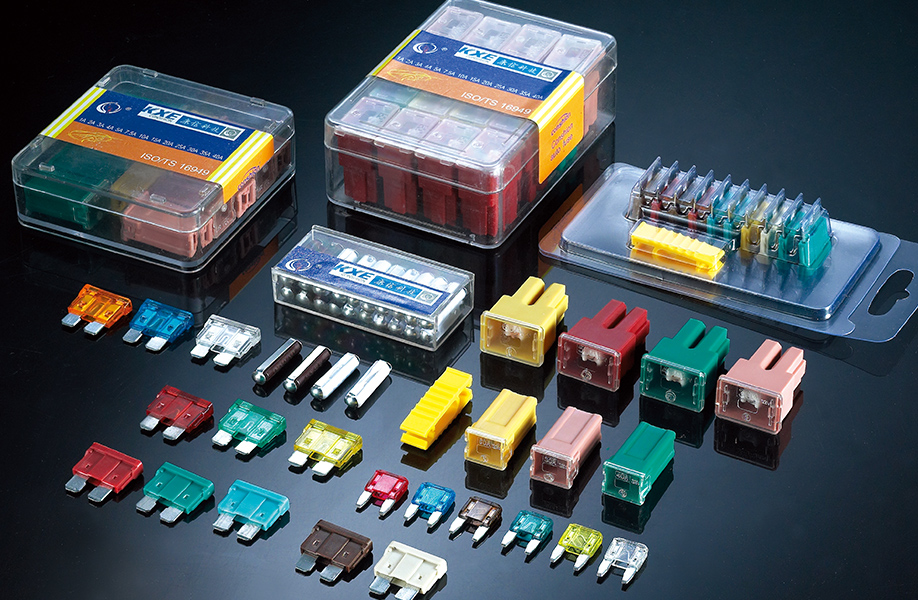

Fuses are simple devices designed for quick visual inspection. They typically feature transparent or semi-transparent housings. Blade fuses are the most common example in modern vehicles. This clear plastic allows you to see the internal metal filament directly.
Furthermore, they are color-coded purely by amperage ratings. A 10-amp fuse is universally red. A 15-amp fuse is universally blue. This color system prevents accidental misplacement during repairs. You always know exactly what capacity you hold in your hand.
Relays look entirely different. They sit in opaque, square casings with 4 to 5 metal pins protruding from the bottom. You cannot see the internal mechanisms. Professional automotive relays follow strict DIN 72552 standards for implementation. This numbering system ensures universal compatibility.
Terminal Pin | DIN 72552 Function | Circuit Connection Strategy |
|---|---|---|
Pin 30 | Power In | Connects directly to the battery or main power bus. |
Pin 85 & 86 | Control Circuit | Connects to the coil ground and the trigger switch. |
Pin 87 | Power Out (NO) | Normally Open. Sends power to the device when activated. |
Pin 87a | Power Out (NC) | Normally Closed. Sends power when the device is deactivated. |
Common variants evaluated for different setups include the SPST (Single Pole Single Throw). We use these for simple toggles, like turning on fog lights. Advanced builders also use the DPDT (Double Pole Double Throw). We rely on DPDT variants for complex reversals, like operating motorized window regulators.
Faster, accurate troubleshooting reduces labor hours and prevents unnecessary component replacement. Dealership mechanics charge premium rates for electrical diagnostics. Understanding failure profiles directly lowers your Total Cost of Ownership. It allows you to pinpoint faults accurately.
Component | Primary Symptom | Testing Method | Failure Mechanism |
|---|---|---|---|
Fuse | Complete power loss | Visual inspection / Continuity test | Thermal overload (Melted filament) |
Relay | Intermittent failure / Dim lights | Listen for "click" / Swap test | Mechanical wear / Arc corrosion |
Symptom: Complete, sudden loss of power to a subsystem. The component simply stops working altogether.
Verification: Perform a visual inspection for a severed filament. Use a digital multimeter to conduct continuity testing across the top test pins.
Resolution Rule: You must replace it with the exact same amperage rating. A recurring blown fuse indicates a systemic short circuit. You must find the bare wire touching the chassis.
Symptom: Intermittent malfunctions or weak component performance. You might experience dimming lights. You may notice the absence of an audible "click" when you press the activation switch.
Verification: Perform swap testing with a known working unit of the exact same specification. Listen closely for audible engagement when applying trigger power.
Resolution Rule: Relays suffer from mechanical wear and contact arcing over time. They cannot be "reset" like a household circuit breaker. You must replace them when internal contacts corrode and fail.
OEM manufacturers and high-end aftermarket builders do not scatter these components randomly throughout the vehicle. They unify them. Centralizing power distribution is a hallmark of professional electrical engineering. It simplifies the entire architecture of the vehicle.
There are three primary reasons why modern system integrators choose unified hubs.
Hazard Isolation: Centralizing components in a sealed weather-proof hub protects delicate electronics. It shields copper terminals from extreme engine bay heat, splashing moisture, and abrasive debris. It prevents premature corrosion.
Wiring Efficiency: A combined unit drastically reduces the length of heavy-gauge wire runs. It minimizes dangerous voltage drops to high-draw devices like roof light bars or onboard air compressors. Shorter runs mean cooler, safer wires.
Scalability: A unified Car Fuse Box allows fleet managers and off-road builders to add new circuits cleanly. You no longer need to splice haphazardly into factory wiring. You simply plug a new relay and fuse into an empty standardized slot.
Incorrect sequencing of electrical components is a primary cause of aftermarket vehicle fires. When enthusiasts wire new accessories, they often guess the placement order. Guesswork in high-amperage systems yields catastrophic results. A strict hierarchy governs electrical flow.
The fuse must always be installed strictly before the relay. Engineering best practices dictate placing the primary fuse within 12 inches of the battery terminal or the main power bus. This ensures the longest possible stretch of wire remains protected.
We must examine what happens during a catastrophic failure. If a dead short occurs—where a live wire touches the metal vehicle frame—a massive current spike will travel through the circuit instantly.
If you place the Car Relay first in the sequence, the resulting current spike can arc across the internal switch. This plasma arc generates immense heat. It permanently welds the relay contacts together. This keeps the circuit completely "live" despite your efforts to switch it off. It ultimately causes total wire meltdown.
Placing the fuse first solves this physics problem. The massive current hits the fuse element immediately. It severs the power supply completely and safely. This strict topology protects both the downstream copper wire and the expensive relay unit itself. It guarantees a safe failure mode.
Understanding automotive electrical protection requires evaluating the complementary roles of distinct components. Fuses act as rigid gatekeepers. They strictly manage thermal safety limitations and protect your core wiring harness. Relays act as intelligent directors. They dictate switching logic and handle heavy load management efficiently. Confusing these roles compromises vehicle safety.
Next Steps for System Upgrades:
When upgrading vehicle electrical systems, prioritize a high-quality, weather-sealed centralized power block.
Ensure your chosen hub easily accommodates standardized DIN 72552 relays.
Verify it accepts common blade fuses to ensure immediate replacement availability.
Follow strict wiring topology rules to ensure long-term reliability and compliance.
A: No. Relays are not protective devices and do not trip. If a circuit overloads, a hidden fuse will blow, or the relay's internal contacts will suffer permanent thermal damage. You cannot reset them; they require total replacement if damaged.
A: Running thick, high-amperage wire into the vehicle cabin increases fire risk, costs more in copper, and creates extreme heat at the physical switch, leading to rapid component failure. Relays isolate this danger in the engine bay.
A: Never. A fuse is sized specifically to the thermal capacity of the wire it protects. Upsizing the fuse removes the safeguard, allowing the wire to melt and potentially ignite before the circuit finally breaks.
